Damper Assembly 561-01-74007 561-01-74006 For Komatsu HD785-7

Damper Assembly 561-01-74007 561-01-74006 for komatsu HD785-7

This is an assembly that includes the following parts, and each part can be sold separately

warranty：6months

delivery time ：90days

quality：OEM

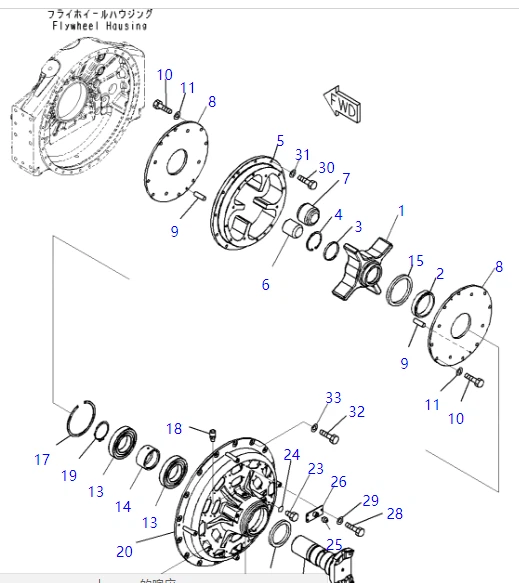

561-01-74007 [1] Damper Assembly Komatsu 209 kg.

561-01-72661 [1] Body Assembly Komatsu China

1. 561-01-72651 [1] Body Komatsu 20.9 kg.

2. 427-12-11223 [1] Spacer Komatsu 0.96 kg.

3. 561-01-71370 [1] Cap Komatsu 0.12 kg.

4. 04065-01030 [1] Ring, Snap Komatsu 0.047 kg.

5. 561-01-72140 [1] Body, Outer Komatsu China

6. 561-01-62410 [4] Rubber Komatsu 0.5 kg.

7. 561-01-72420 [4] Rubber Komatsu 0.84 kg.

8. 561-01-62161 [2] Flange Komatsu 13.995 kg.

9. 04020-00820 [4] Pin, Dowel

10. 01010-61435 [24] Bolt Komatsu China 0.06 kg.

11. 01643-31445 [24] Washer, Flat Komatsu 0.019 kg.
12. 561-01-71140 [1] Shaft Komatsu 24 kg.

13. 561-01-71640 [2] Bearing Komatsu 0.000 kg.

14. 427-12-11262 [1] Spacer Komatsu 1.29 kg.

15. 427-12-11343 [1] Seal Komatsu 1.6 kg.

16. 427-12-11353 [1] Seal Komatsu 1.3 kg.

17. 04071-00170 [1] Ring, Snap Komatsu 0.2 kg.

18. 07030-01030 [1] Breather Komatsu 0.016 kg.
19. 04064-09530 [1] Ring, Snap Komatsu China 0.05 kg.

20. 561-01-71153 [1] Cover Komatsu China
21. 07040 22. 07002-11223 [1] O-ring

For any questions about accessories, you can send an email or consult on WhatsApp
