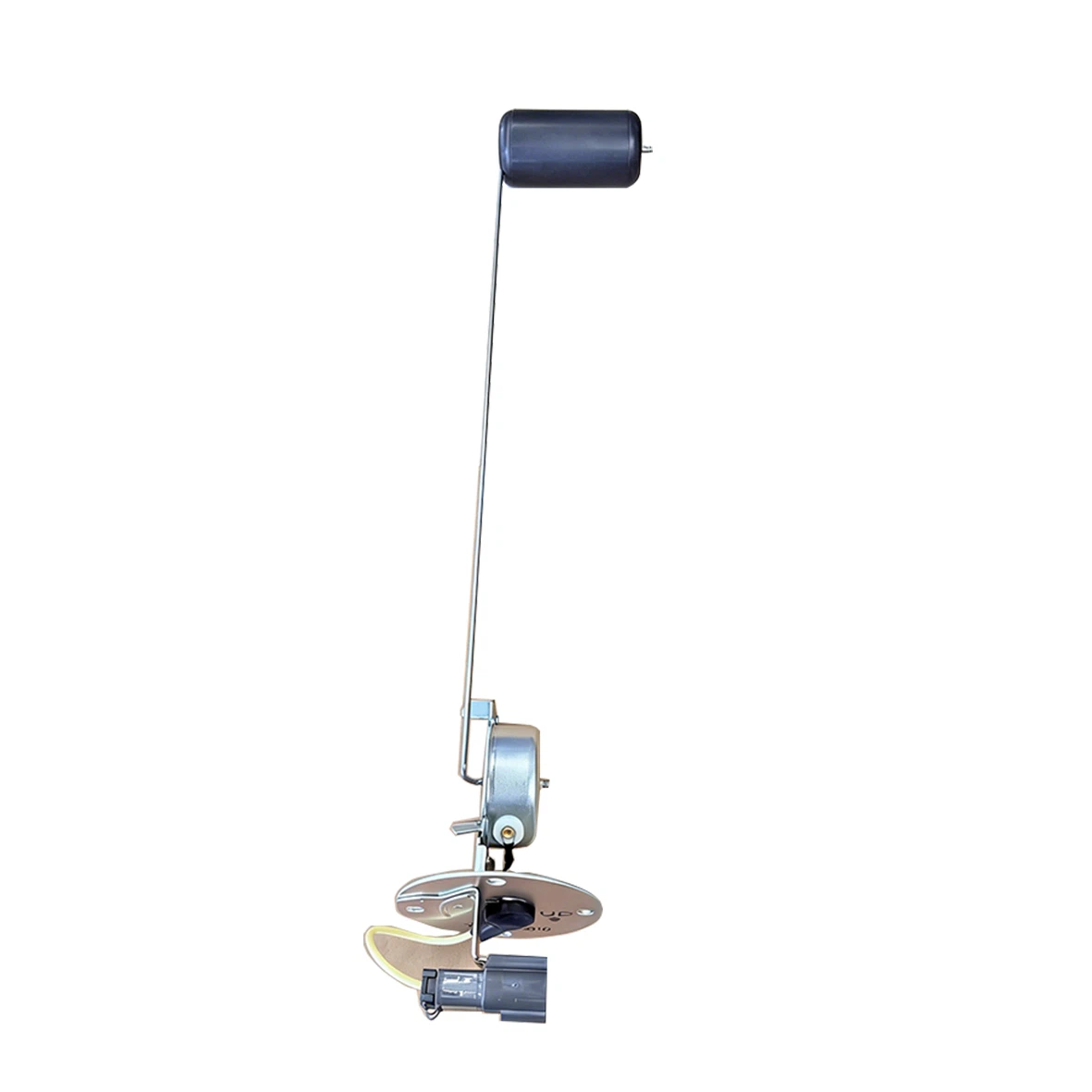

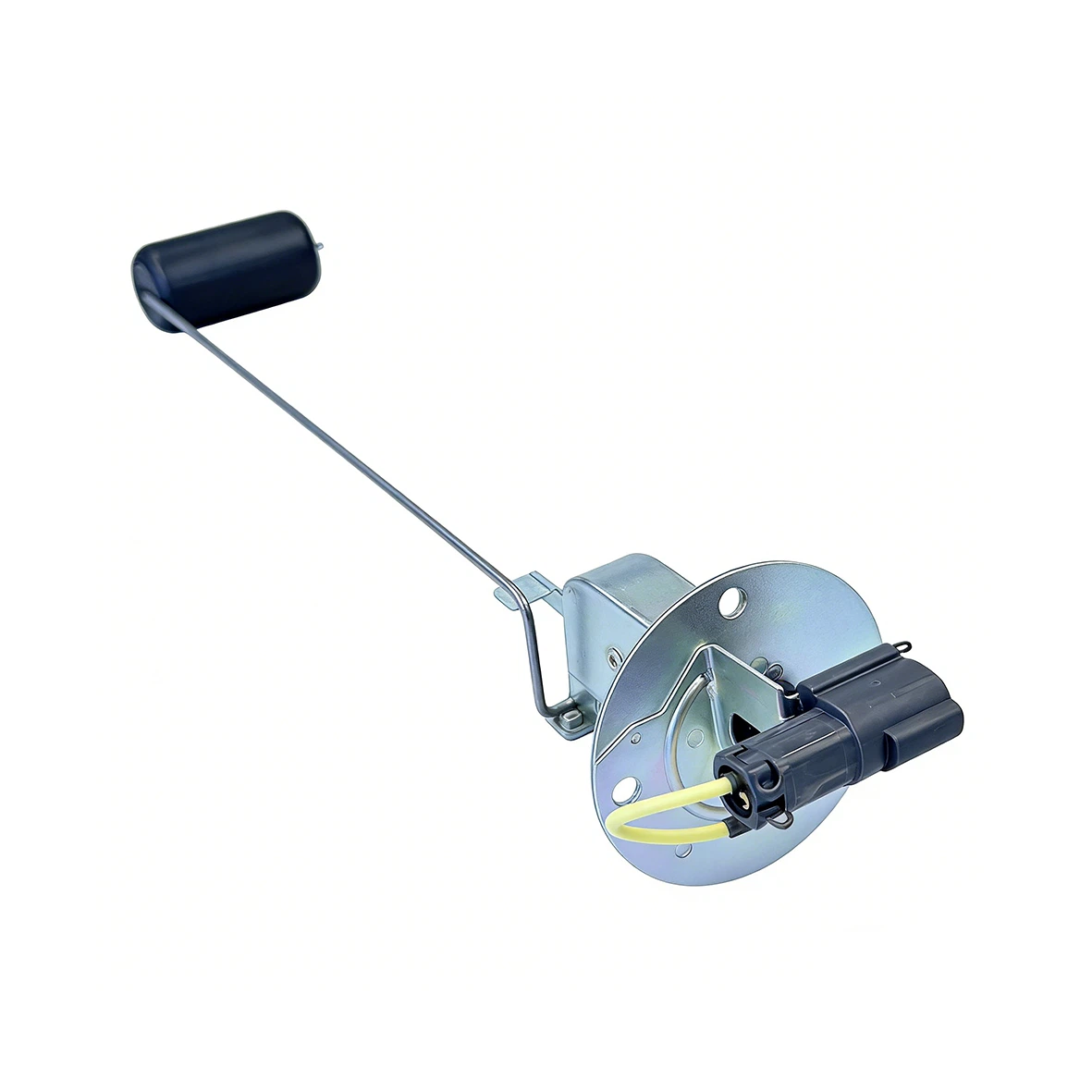

7861-92-5810 Fuel Level Sensor: Product & Industry Introduction
The 7861-92-5810 fuel level sensor is a critical component designed for Komatsu construction machinery, widely compatible with excavators, wheel loaders, bulldozers, and other heavy-duty equipment. It serves as the primary monitoring device for the fuel tank, providing real-time fuel level data to the vehicle's dashboard and electronic control system, ensuring operators maintain full visibility of fuel consumption and avoid unexpected downtime.
Core Product Information & Working Principle
This sensor operates on the classic float-arm potentiometer principle, converting fuel level changes into measurable electrical signals. Its key components include a corrosion-resistant float, a precision stainless steel arm, a sealed potentiometer unit, and an electrical connector. As fuel levels rise or fall, the float moves vertically, rotating the arm and adjusting the resistance value of the internal potentiometer. The resulting variable voltage signal is transmitted to the vehicle's gauge cluster, displaying accurate fuel levels on the operator's panel.
The 7861-92-5810 is engineered specifically for the harsh operating conditions of construction sites:
The float is made of oil-resistant, impact-proof material to withstand fuel sloshing, vibration, and temperature fluctuations.
The potentiometer is fully sealed to prevent fuel, moisture, and dust ingress, ensuring long-term stability.
The electrical contacts are gold-plated to resist corrosion and ensure consistent signal transmission, even in high-vibration environments.
Industry Comparison & Competitive Advantages
In the construction machinery aftermarket, fuel level sensors vary significantly in quality and performance, making component selection critical for equipment reliability.
| Feature | Tongderui 7861-92-5810 Sensor | Generic Aftermarket Sensors |
|---|---|---|
| Accuracy & Calibration | Calibrated to match OEM specifications, with linear resistance output for precise fuel level readings. | Often poorly calibrated, leading to inaccurate readings (e.g., false "full" or "empty" alerts). |
| Durability | Sealed potentiometer, reinforced arm, and corrosion-resistant materials withstand vibration and fuel exposure. | Prone to internal corrosion, arm bending, or float damage under harsh conditions. |
| Compatibility | Direct OEM fit with exact connector and mounting dimensions, no modifications required. | May require drilling, wiring splicing, or custom brackets, increasing installation complexity. |
| Service Life | Designed for 5+ years of continuous use with minimal drift. | Often fail prematurely (1–2 years) due to wear or environmental damage. |
Step-by-Step Installation & Usage Guide
Proper installation ensures the sensor functions reliably and accurately. Follow these steps:
Pre-Installation Preparation: Ensure the fuel tank is partially drained or depressurized to avoid spills. Disconnect the vehicle's battery to prevent electrical shorts. Gather basic tools (wrenches, sealant, and a torque wrench).
Remove the Old Sensor: Locate the fuel tank's sensor access port. Disconnect the electrical connector, then loosen and remove the mounting bolts. Carefully lift the old sensor assembly out of the tank, taking care not to damage the float arm.
Inspect the New Sensor: Verify the new 7861-92-5810 sensor matches the old part's dimensions, connector, and float length. Test the sensor's resistance output with a multimeter to confirm it functions correctly.
Install the New Sensor: Apply a thin layer of fuel-resistant sealant to the mounting gasket. Insert the sensor assembly into the tank, aligning the float arm to avoid contact with internal baffles or the tank wall. Tighten the mounting bolts to the specified torque to prevent leaks.
Reconnect & Test: Plug in the electrical connector, then reconnect the battery. Turn on the vehicle's ignition and verify the fuel gauge responds correctly. Fill the tank with a small amount of fuel to confirm the gauge moves smoothly from "empty" to "full."
Final Inspection: Check for leaks around the sensor's mounting flange. If the gauge readings are unstable or inaccurate, double-check the float arm alignment and electrical connections.
Industry Significance
A reliable fuel level sensor is essential for construction equipment operations. Accurate readings prevent operators from running out of fuel mid-shift, which can cause costly downtime and require emergency refueling. By choosing a high-quality sensor like the 7861-92-5810, equipment owners avoid the common failures of generic parts, ensuring long-term reliability, reducing maintenance costs, and maximizing machine uptime on the job site.
|
