English Introduction of 561-50-8F006 Front Suspension Hydraulic Cylinder (≈400 words)

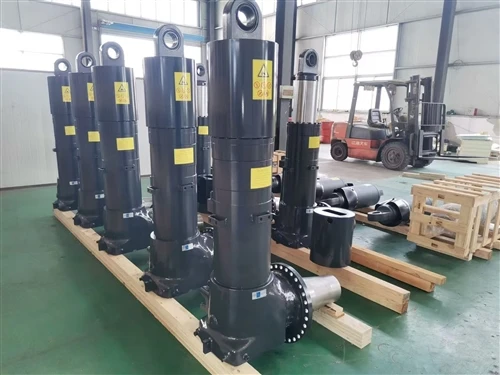

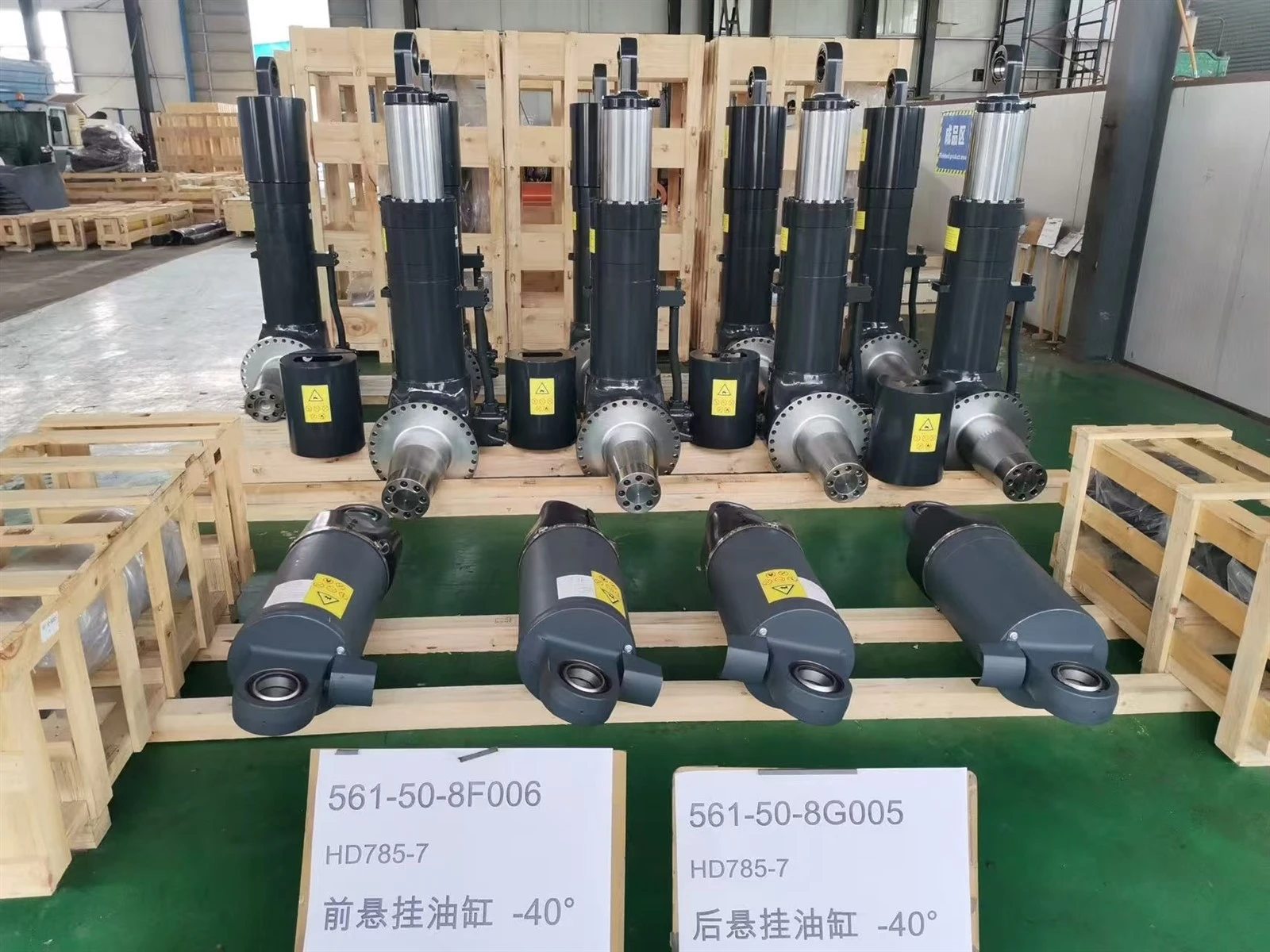

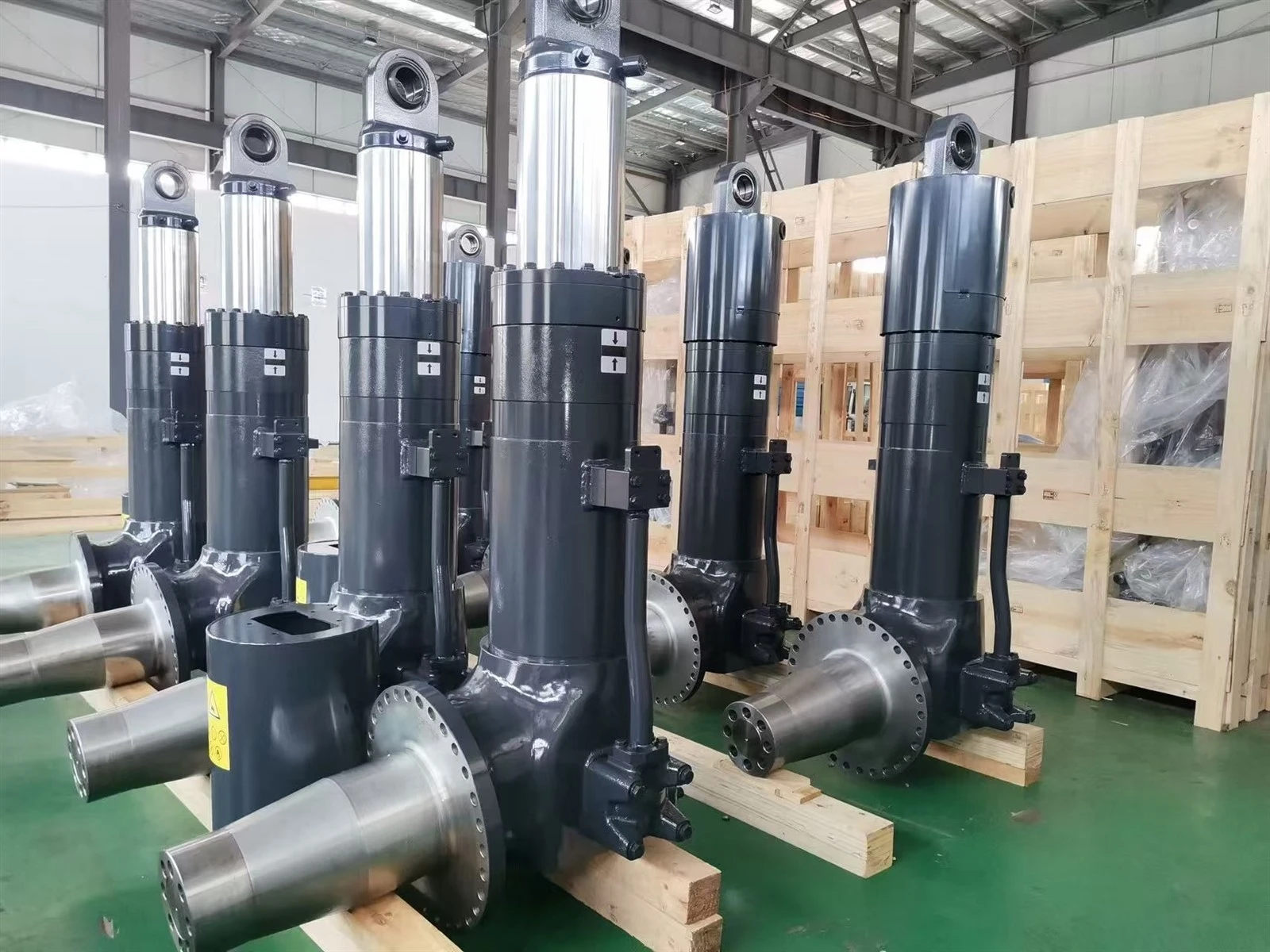

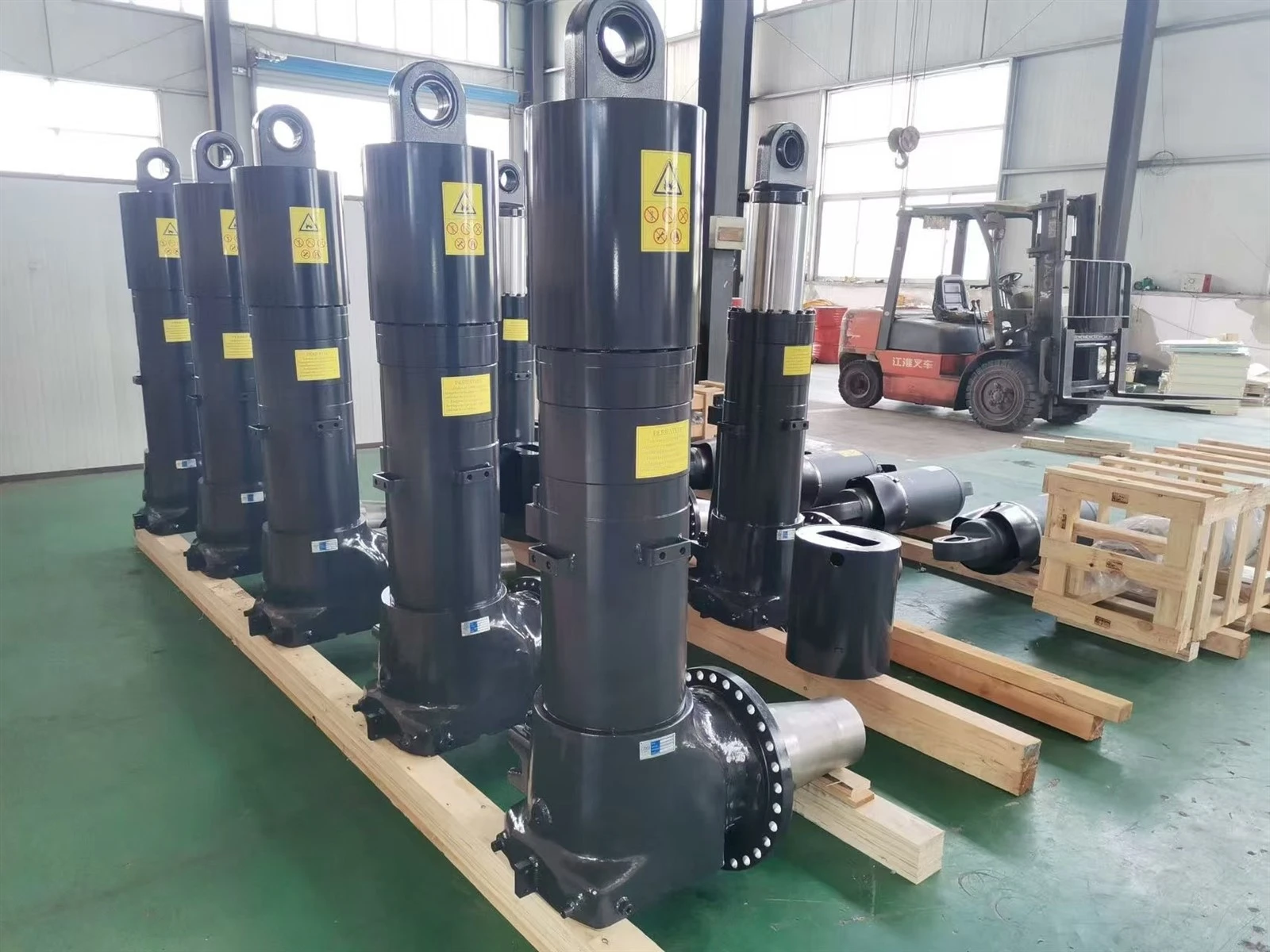

The 561-50-8F006 front suspension hydraulic cylinder, matched for HD785-7 mining dump trucks and designed for -40°C extreme low-temperature environments, is precision-manufactured in our professional hydraulic component factory with standardized full-process production.
Production Process
Raw high-strength alloy steel tubes and solid piston rods first undergo CNC precision turning to guarantee tight dimensional tolerances. Next, surfaces receive automatic polishing and hard chrome plating to boost wear and corrosion resistance. Robotic welding forms integrated cylinder assemblies, followed by assembly of seals, pistons, guide sleeves and valves in dust-free workshops. All inner cavities are fully cleaned with high-pressure oil flushing to eliminate metal debris before finished product assembly.
Strict Quality Inspection
Every cylinder passes multi-stage testing. First, dimensional and surface flaw detection via coordinate measuring machines. Then static and dynamic pressure leakage tests under rated working pressure to rule out oil seepage. Low-temperature simulation testing at -40°C verifies flexible seal performance in frigid climates. Final fatigue cycling tests confirm long service life under heavy mining loads; only fully qualified units are labeled and packed into wooden export crates.
Application & Operation
This model exclusively fits HD785-7 heavy-duty mining haul trucks. Mounted on the vehicle's front suspension system, it cushions violent vibrations from rough mine roads, stabilizes the chassis, protects the frame and enhances driving safety. During operation, the hydraulic cylinder automatically stretches and retracts to absorb shock as the truck carries full mining loads over uneven terrain.
Maintenance Guidelines
Check hydraulic oil levels and seal surfaces weekly for leaks. Replace low-temperature resistant hydraulic oil and wear-prone sealing kits every 500 working hours. Keep piston rod surfaces free of rock scratches, mud and ice to avoid seal damage. Store spare cylinders in dry, constant-temperature warehouses; avoid long-term exposure to freezing outdoor air without anti-rust protection. Proper maintenance can extend the cylinder's service life significantly and cut down vehicle downtime in mining sites.
